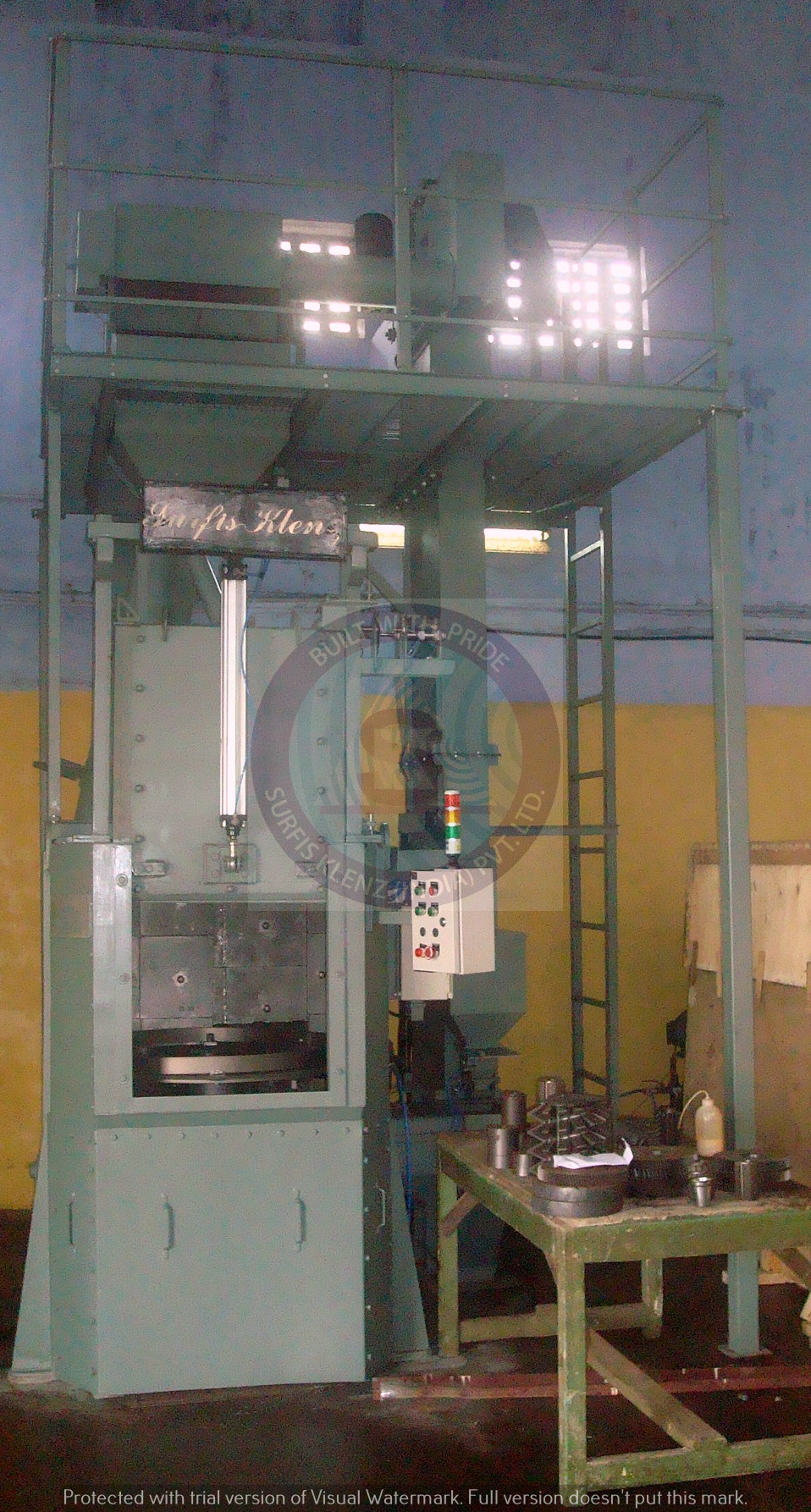

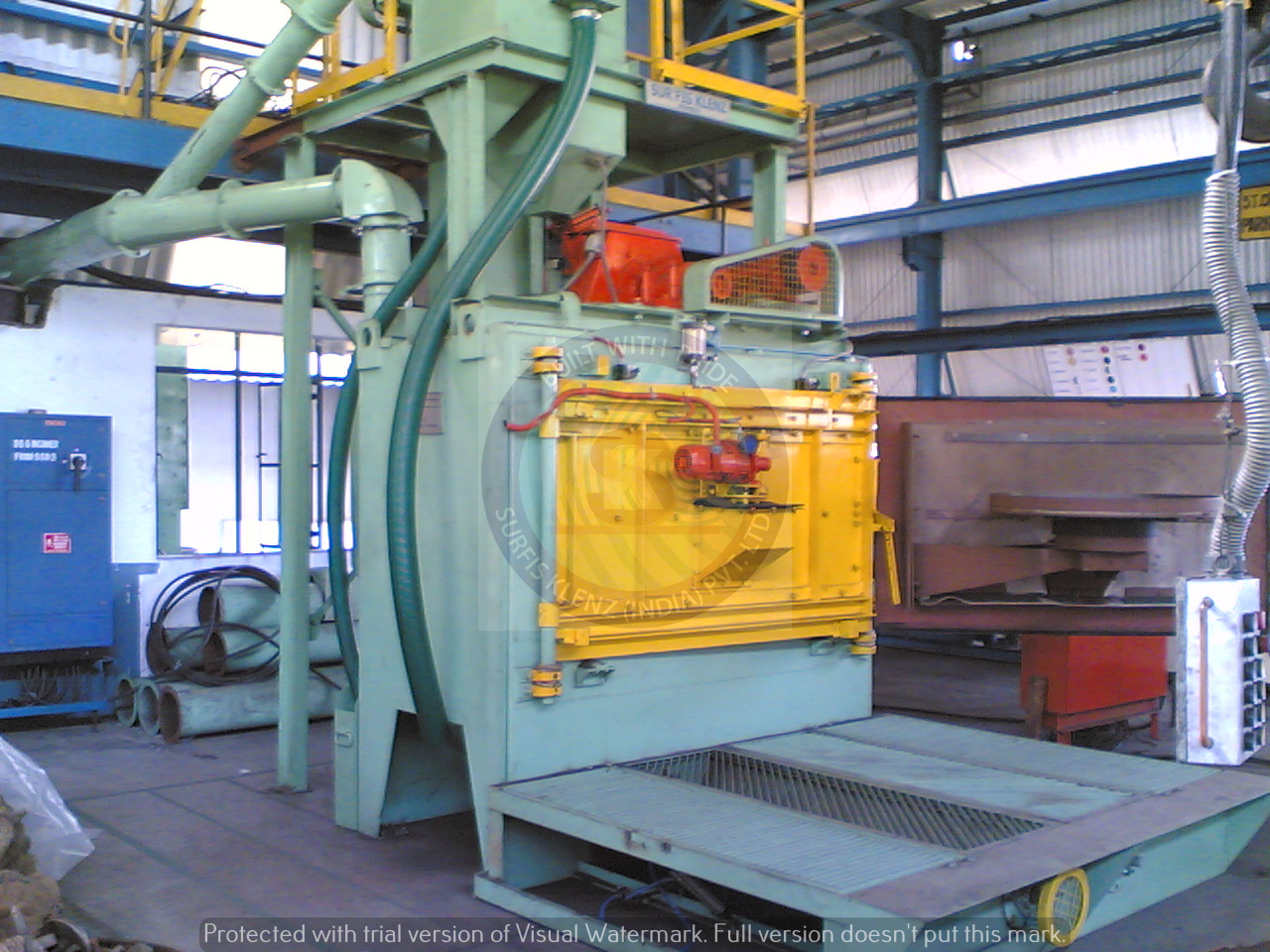

TABLE TYPE SHOT BLASTING MACHINE

Posted in Shot Blasting, SHOT BLASTING EQUIPMENT (WHEEL BLASTING)

Table Type Shot Blasting are general purpose shot blasting machines. These machines can be used to process components such as gears, forgings, castings, and delicate components. Components of different sizes, geometries, shape, as well as delicate components can be processed easily.This machine comes standard with all safety features along with all POKA-YOKE and TPM concept for maximum utilization of the machine.

Table type machines can be configured into Single Table Shot Blasting Machine mounted directly inside the chamber. Tables directly mounted on a swinging door is also available as an option.

APPLICATION: Shot Blasting Of Castings, Forgings, Heat Treated Parts, Engineering Components, Fabricated Components

MACHINE GENERAL SPECS

  • MAIN TABLE DIMENSIONS – 36 INCH 48 INCH 
  • COMPONENT WEIGHT (max) - 350 Kgs – 1000 Kgs
  • NO. TABLES – ½
  • No. OF BLASTING WHEELS - 1
  • DELIVERY – 12 WEEKS +

KEY ADVANTAGES

  • GENERAL PURPOSE SHOT BLASTING MACHINE
  • HIGHLY FLEXIBLE IN SHOT BLASTING DIFFERENT COMPONENTS

FEATURES



OPTIONAL FEATURES

  • PILZ SAFETY RELAY
  • TEMPERATURE SENSOR WITH FIRE DOSING FACILITY
  • AUTOMATIC DOOR CLOSING AND OPENING
  • EXTENDED HOPPER WITH SCREW CONVEYOR FOR SPILLED MEDIA COLLECTION AND CIRCULATION
