CONTINUOUS HANGER SHOT PEENING EQUIPMENT

Posted in SPECIAL EQUIPMENT

SÛR'FIS KLENZ has pioneered in designing and supplying Continuous Hanger Type Machine for shot peening application.

The CONTINUOUS HANGER TYPE SHOT PEENING MACHINE has been designed specifically keeping in the mind the stringent shot peening requirement. In the shot peening process, reliability is paramount. Individually all parts will undergo a defined treatment.

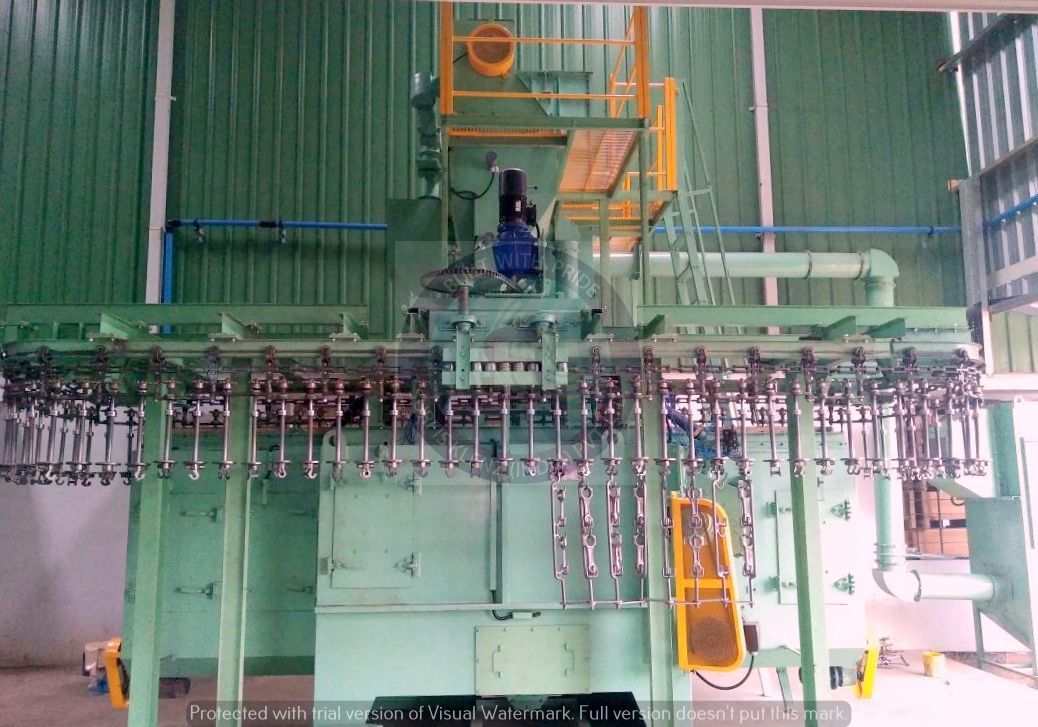

The machine primarily consists of a heavy duty caterpillar drive chain. The hangers are mounted at the chain at suitable pitch. Components which will be shot peened will hung on these hangers.

The peening intensity can be controlled by determining the Almen value and coverage. Due to the fact that all parameters (throughput speed, blasting time, discharge speed, shot size and distribution) in a Continuous Shot Peening Systems are defined exactly, it is possible to adjust and examine the Almen intensity and coverage.

SÛR'FIS KLENZ make continuous shot peening machine are designed in such a way that they can easily be integrated with an existing production systems.

APPLICATION: Designed Specifically For Shot Peening, Machine Can Be Used To Do Shot Blasting, Cleaning, Corrosion Removal, Rust & Heat Scale Removal, Surface Texturing, Paint Preparation, Continuous Process Line

MACHINE GENERAL SPECS

  • COMPONENT DIMENSIONS : Ø 50MM X LENGTH 400MM
  • WORK PIECE WEIGHT – 500 GMS TO 20KGS
  • CONVEYOR SPEED – VARIABLE
  • NO OF BLASTING WHEELS – 2 TO 4
  • NO.OF HANGERS – 36
  • DELIVERY – 12 WEEKS +

KEY ADVANTAGES

  • SMOOTH MOVEMENT OF COMPONENTS WITHOUT ANY PART TO PART IMPACT.
  • LOADING AND UNLOADING CAN BE DONE CONTINEOUSLY WHILE THE SHOT BLASTING PROCESS IS ON.
  • SELF CONTAINED MACHINE
  • HIGH PRODUCTIVITY
  • CONSISTENT COMPONENT FINISH AND QUALITY

FEATURES

  • FULLY AUTOMATIC CONTINUOUS SHOT PEENING OPERATION
  • FULL PLC CONTROL
  • VARIABLE CONVEYOR BELT SPEED
  • VARIABLE BLASTING WHEEL RPM
  • MINIMUM OPERATOR INVOLVEMENT
  • INCHING MODE FOR CONVEYOR
  • INTEGRATED MEDIA SIZING 3 DECK VIBRATORY SCREEN SEPARATOR
  • INDIGENOUSLY DEVELOPED MEDIA FLOW CONTROLLER

OPTIONAL FEATURES

  • PILZ SAFETY RELAY
  • TEMPERATURE SENSOR WITH FIRE DOSING FACILITY
  • INDIGENOUSLY DEVELOPED MEDIA FLOW CONTROLLER
  • CONTROL OF BLASTING WHEEL RPM
  • PART LOADING AND UNLOADING CAN BE INTEGRATED WITH ROBOT
