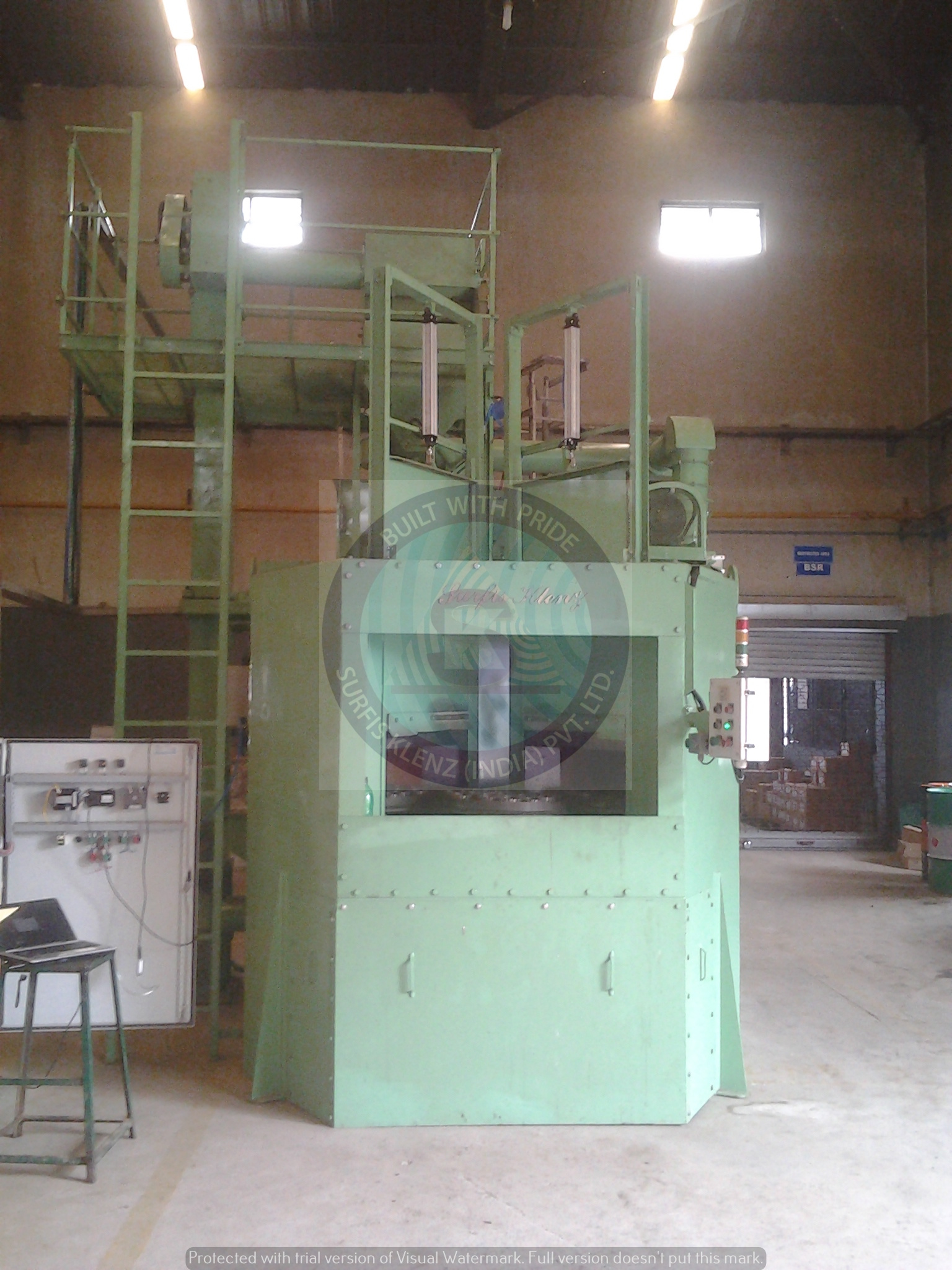

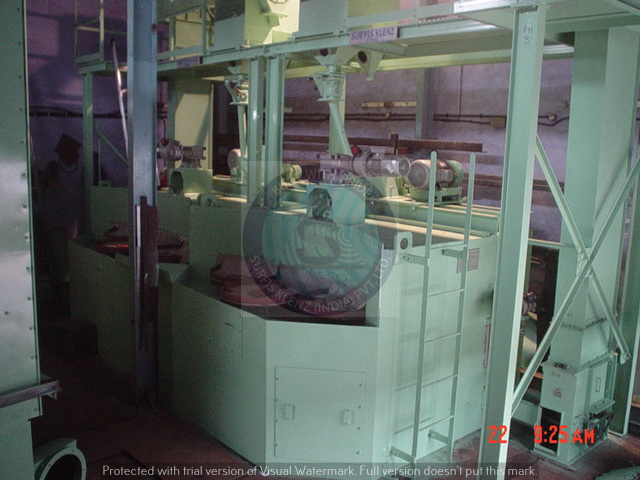

MULTI TABLE TYPE SHOT BLASTING MACHINE

Multi Table Type Shot Blasting are in improvised version of a conventional type swing table shot blasting machine. These machines provide the advantage of lower cycle and higher productivity.

Due to smaller auxiliary table dia. the components get maximum impact of the blast stream. The main table indexes at a pre-determined time based upon the set cycle time. Component loading and unloading can be done simultaneously along with the shot blasting operation happening inside the blasting chamber.

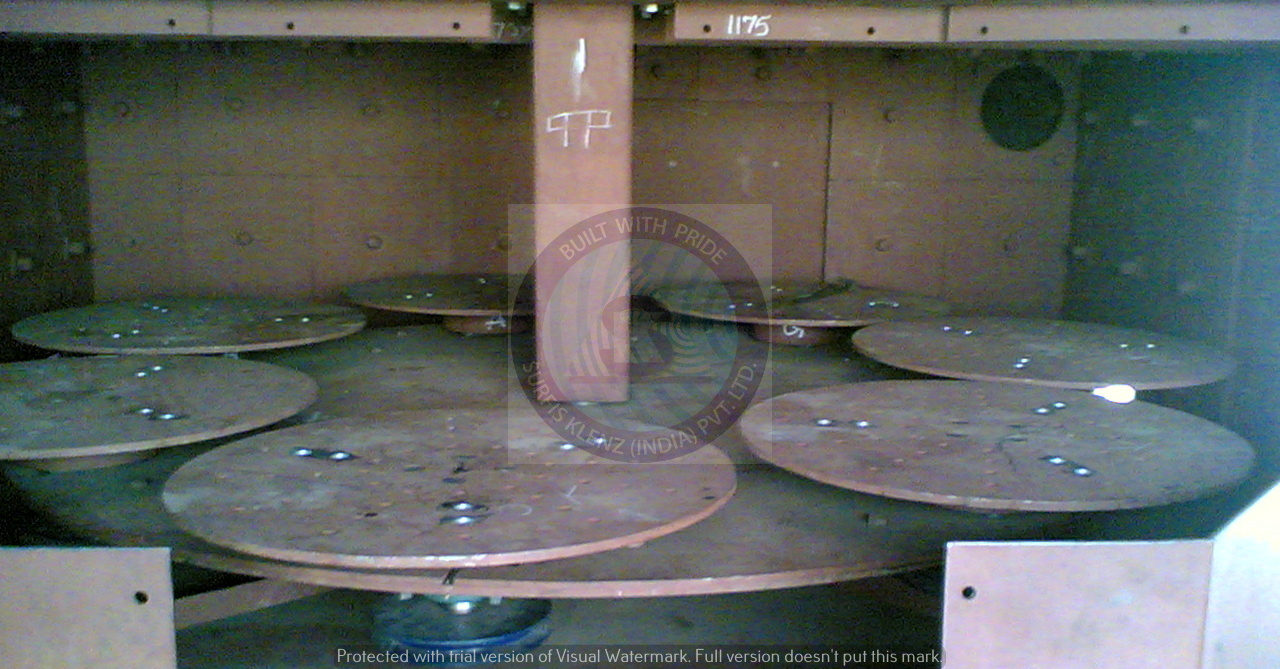

The machine have satellite tables ranging from 5 to 10 tables each with a varying table dia. of 300mm to 550mm depending upon the product and volume of production. Wheel orientation and location can be changed during the designing stage based upon the component geometry and suitability. These machines are highly compact and can function is small spaces.

APPLICATION: Shot Blasting Of Aluminum Components, Forgings, Heat Treated Components, Flat Components

MACHINE GENERAL SPECS

• MAIN TABLE DIA. – 1100 mm - 2100 mm
• SATELLITE TABLE DIA – Ø 300mm - Ø 700mm
• No. OF TABLES – Min 5
• No. OF BLASTING WHEELS – 1 / 2
• DELIVERY – 12 WEEKS +

KEY ADVANTAGES

• MINIMAL FLOOR SPACE REQUIRED.
• SELF CONTAINED MACHINE
• HIGH PRODUCTIVITY
• CONSISTENT SHOT BLASTING PROCESS REPEATABILITY

FEATURES

• FULLY AUTOMATIC CONTINUOUS SHOT BLASTING OPERATION
• FULL PLC CONTROL
• ERGONOMIC LOADING / UNLOADING HEIGHT
• DIRECT DRIVE BLASTING WHEEL
• MINIMUM OPERATOR INVOLVEMENT

OPTIONAL FEATURES

• PILZ SAFETY RELAY
• SAFETY LIGHT CURTAIN
• BLOW OFF ZONE FOR CLEANING OF COMPONENTS AFTER BLASTING
• TEMPERATURE SENSOR WITH FIRE DOSING FACILITY
• INDIGENOUSLY DEVELOPED MEDIA FLOW CONTROLLER
• REAL TIME DATE LOGGING
