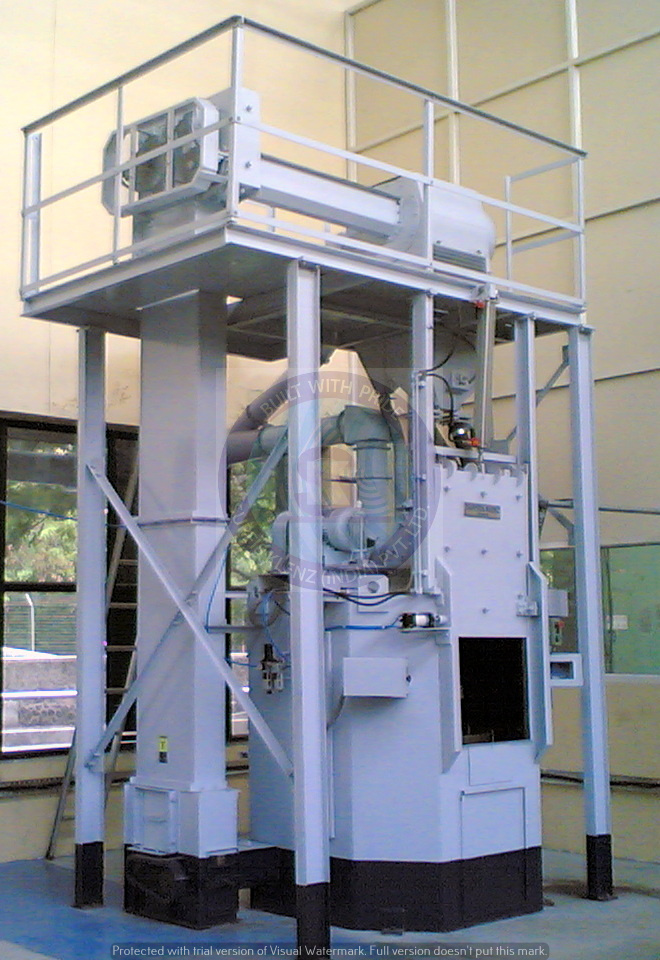

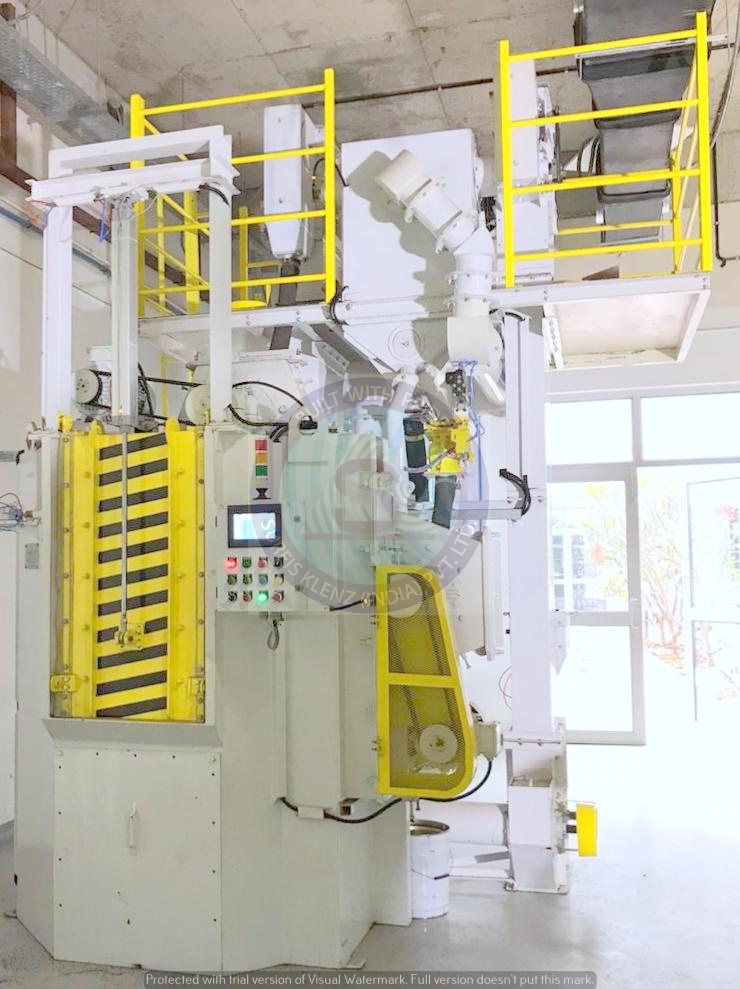

DUAL PURPOSE SHOT BLASTING/PEENING MACHINE

Especially Developed Wheel Blasting Machine has been designed to fulfill dual function of shot peening as well as shot blasting. The machine is designed especially for R & D application.

The machine comes with a single table and 2 blasting wheels ideally located for shot blasting and shot peening respectively. The media flow is effectively and efficiently controlled thru a SÛR'FIS KLENZ designed valve which works in a very close ampere range of ± 1amp. The machine comes standard with vibratory screen separator for media filtration and sizing.

APPLICATION: Shot Peening Of 2 Wheeler Transmissions Gears, Shot Blasting Of Castings & Heat Treated Parts

MACHINE GENERAL SPECS

• COMPONENT DIMENSIONS (max) – Ø70 mm x Length 400mm
• COMPONENT WEIGHT (max) - 50 kgs
• NO. TABLES – 1
• DELIVERY – 12 WEEKS +

KEY ADVANTAGES

• HIGHLY FLEXIBLE IN SHOT PEENING DIFFERENT COMPONENTS
• HIGHLY FLEXIBLE IN SHOT BLASTING DIFFERENT COMPONENTS
• HIGH PROCESS REPEATABILITY
• LOW MAINTAINENCE COST
• SPACE SAVER
• ENERGY SAVE MODE

FEATURES

• PRODUCT ROTATIONAL SPEED
• COMPLETE CONTROL OF PEENING PARAMETERS
• INDIGENOUSLY DEVELOPED MEDIA FLOWCONTROLLER
• CONTROL OF SHOT SIZING CONTROL OF BLASTING WHEEL RPM
• FULL PLC CONTROL
• RECIPE OPTION AVAILABLE

OPTIONAL FEATURES

• PILZ SAFETY RELAY
• SAFETY LIGHT CURTAIN
• INDIGENOUSLY DEVELOPED MEDIA FLOW CONTROLLER
• TEMPERATURE SENSOR WITH FIRE DOSING FACILITY
